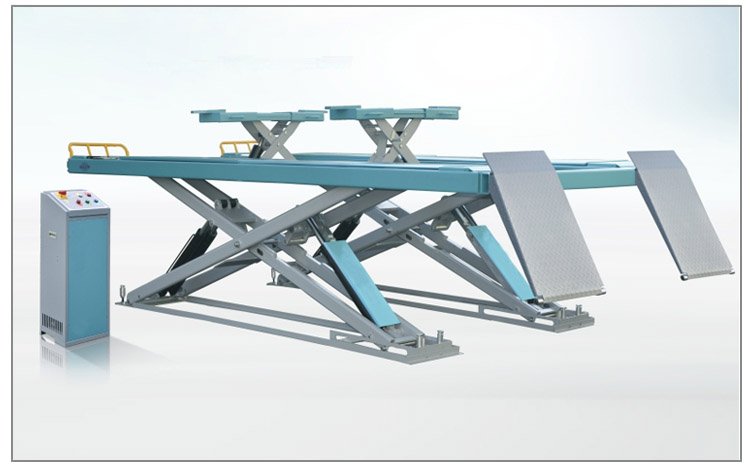

Alignment Scissor Post Lift S-T8135R

Lifting Capacity : 3500Kg
Lifting Height : 1800mm
Lowering Height : 50mm
Lifting Time : - 60-65S
Lowering Time : 55-60S
Motor Power : 3.0KW

Product Details

Alignment Scissor Post Lift S-T8135R– Hydraulic 4‑Wheel Alignment Lift Supplier

An **alignment scissor post lift** is a vehicle lifting system integrated with 4‑wheel alignment capabilities, designed for automotive service centers and tire repair shops.
This combined lift allows technicians to raise vehicles and perform precise alignment work without moving the car between separate lift and alignment machines.
It features a hydraulic scissor lift mechanism, adjustable turnplates, wheel alignment sensors, and safety locking systems for efficient and accurate work.

Technical Specifications

Item	Specification
Lifting Capacity	4000kg / 8000lbs
Max Lifting Height	1800–1900mm
Min Height	95–110mm
Power Supply	220V / 380V
Drive Type	Hydraulic Scissor Lift
Alignment Features Included	Turnplates + Slip Plates
Recommended Vehicle Type	Cars, SUVs, Light Trucks

Alignment Scissor Post Lift S-T8135R advantage

1.The secondary lifting car fully meets the secondary lifting needs of different vehicles

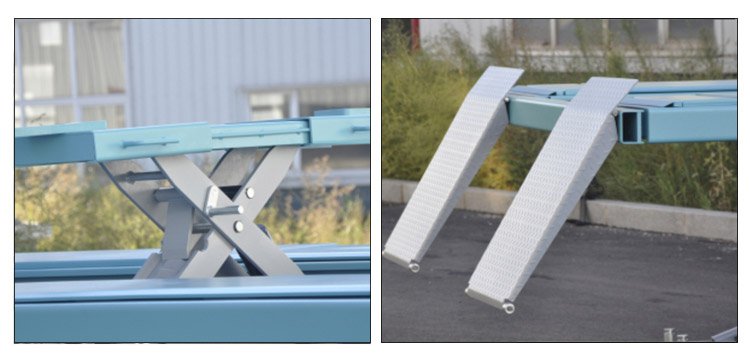

2. Scientific boarding ramp enables vehicles with different chassis heights to board the vehicle

3. Adjustable front boarding barrier for convenient use of space

4. The dual secondary lifting trolley configuration fully meets the vehicle's four-wheel alignment and chassis maintenance needs

5. A more reasonable mother shear insurance system for safer use

Core Features of Alignment Scissor Post Lift

Our alignment scissor post lifts offer:

√ Integrated 4‑wheel alignment platform
√ Stable hydraulic scissor lifting system
√ Adjustable ramps for vehicle entry/exit
√ Turnplates and slip plates included
√ Automatic safety locks and overload protection
√ Heavy‑duty steel construction
√ Suitable for cars, SUVs, and light trucks

Benefits of Alignment Scissor Post Lifts

Choosing an alignment scissor post lift can improve workshop efficiency and service quality:

√ **Faster Workflow:** No need to reposition vehicle for alignment
√ **Space Efficient:** Compact design maximizes shop layout
√ **Accurate Alignment:** Built‑in turnplates and sensors ensure precise results
√ **Cost‑Effective:** Two machines in one solution
√ **Safer Operations:** Safety locks and overload protection

How It Work

An alignment scissor post lift combines a hydraulic scissor lifting system with wheel alignment tools:

1) Drive the vehicle onto the lift platform
2) Use ramps and adjustable arms to secure the vehicle
3) Raise to desired height with the hydraulic scissor system
4) Perform 4‑wheel alignment using built‑in turnplates and alignment tools

Alignment Scissor Post Lift vs Standard Scissor Lift

Feature	Standard Scissor Lift	Alignment Scissor Post Lift
4Wheel Alignment Support	×	√
Hydraulic Lifting	√	√
Turnplates Included	×	√
Workflow Efficiency	Medium	High
Cost	Lower	Higher
