Mobile Column Lift 8500 for Trucks & Buses | Wireless Heavy Duty Vehicle Lift Manufacturer
A mobile column lift 8500 is a flexible heavy-duty lifting solution designed for trucks, buses, and commercial vehicles. It allows operators to lift large vehicles safely using multiple synchronized columns. Compared with fixed lifts, mobile column lifts offer greater mobility, scalable lifting capacity, and easy installation, making them ideal for fleet workshops and service centers.
The Mobile Column Lift is engineered for lifting heavy commercial vehicles such as trucks, buses, trailers, and industrial transport equipment.
Unlike traditional fixed lifts, this system consists of multiple independent lifting columns that can be positioned around the vehicle as needed, offering unmatched flexibility and workspace efficiency.
With advanced synchronization technology and wireless control options, it ensures safe, stable, and precise lifting performance even under maximum load conditions.

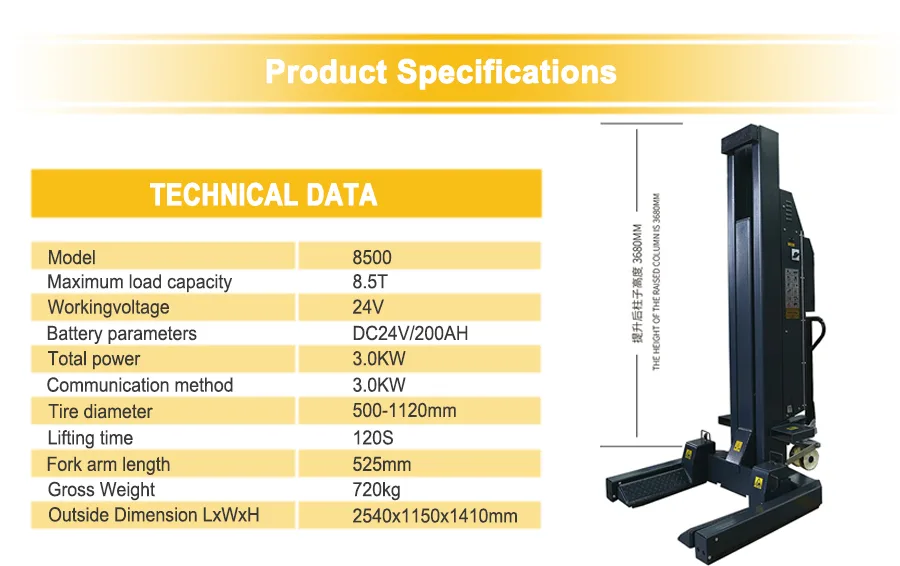

Mobile Column Lift 8500 Technical Specifications
| Item | Specification |
|---|---|
| Maximum load capacity | 8.5T/post |
| Working voltage | 24V |
| Battery parameters | DC24V/200AH |
| Total power | 3.0KW |
| Communication method | wireless connection/Wired connection |
| Tire diameter | 500-1120mm |
| Liftingtime | 120S |
| Forkarm length | 525mm |
| Gross Weight | 720kg |
| Outside DimensionLxWxH | 2540x1150x1410mm |
Applications
The Mobile Column Lift is widely used in:
- Truck maintenance workshops
- Bus service stations
- Logistics fleet repair centers
- Mining and construction vehicle servicing
- Military vehicle maintenance
Key Features
√ Wireless Synchronization System
Each column operates in perfect sync through a wireless communication system, eliminating the need for complex wiring and improving operational efficiency.
√ High Load Capacity
Designed for heavy-duty applications, the system can handle large vehicles such as multi-axle trucks and buses with ease.
√ Flexible Configuration
Available in sets of 4, 6, or 8 columns, allowing users to adjust lifting capacity based on vehicle size.
√ Independent Column Control
Each column can be operated individually for precise positioning and adjustment.
√ Heavy-Duty Steel Construction
Robust structure ensures long-term durability even in high-frequency workshop environments.
√ Safety Protection System
Includes automatic locking mechanism, overload protection, and emergency stop function to ensure operator safety.
Why Choose Mobile Column Lift?
More Flexible Than Fixed Lifts
No installation limitations. Easily move and store the columns when not in use.
Lower Installation Cost
No need for foundation construction or permanent setup.
Space Saving
Perfect for workshops with limited space or multiple service bays.
Scalable Investment
Start with 4 columns and expand as your business grows.
Comparison: Mobile Column Lift vs Fixed Lift
| Feature | Mobile Column Lift | Fixed Lift |
|---|---|---|
| Installation | No foundation required | Permanent installation |
| Flexibility | High | Low |
| Space Usage | Flexible | Fixed |
| Scalability | Expandable | Limited |
Optional Features
- Wireless communication system
- Battery-powered columns
- Touchscreen control panel
- Adjustable forks for different wheel sizes
- Remote control operation
Call To Action
Looking for a reliable Mobile Column Lift manufacturer?
Contact us today for pricing, customization, and technical support.
Get a Quote Now
WhatsApp: +86 18713779288
Email: wheelweight9@ssqcpj.com
FAQ
What is a mobile column lift?
A mobile column lift is a heavy-duty lifting system composed of multiple movable columns used to lift large vehicles such as trucks and buses.
How many columns do I need?
Typically, 4 columns are used for smaller trucks, while 6 or 8 columns are recommended for longer or heavier vehicles.
Is wireless control reliable?
Yes, modern wireless systems ensure stable synchronization and reduce cable-related issues in workshops.
What vehicles can it lift?
It is suitable for trucks, buses, trailers, and other heavy-duty commercial vehicles.
