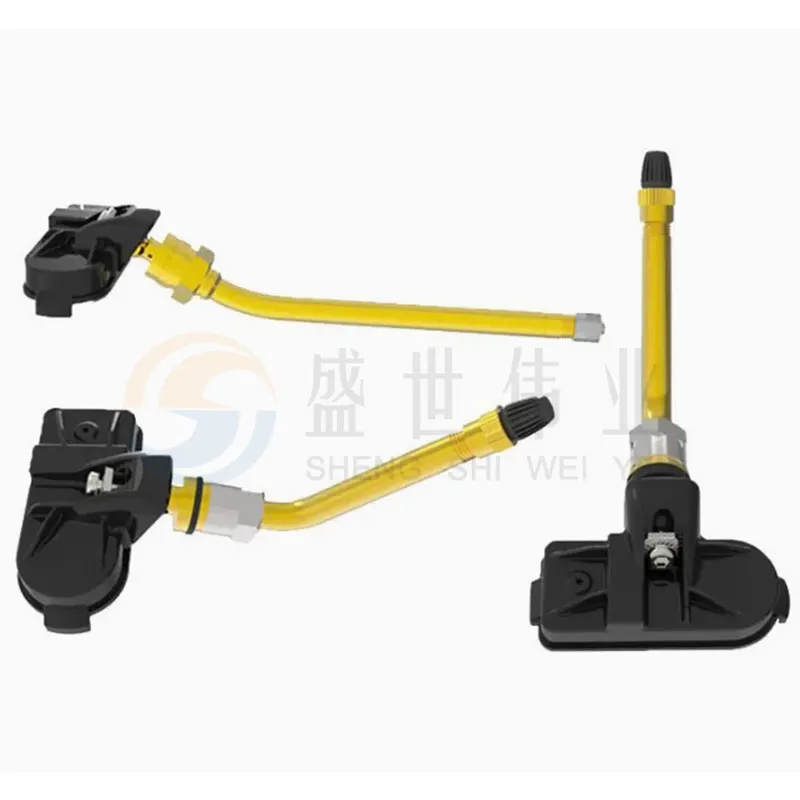

TN600 Tire Pressure Monitoring System Sensor for Trucks Product Overview
Our TN600 Tire Pressure Monitoring System Sensor are designed to provide accurate tire pressure monitoring for commercial transportation. These sensors use advanced wireless transmission technology and durable metal valve stems to ensure reliable performance under demanding driving conditions.
The sensors are compatible with a wide range of trucks, RVs, trailers, and fleet vehicles, making them an ideal solution for tire safety management.
Product Features
- High-frequency transmission uses FSK modulation, low-frequency transmission uses ASK modulation.
- All imported automotive-grade materials, ensuring long lifespan, high stability, and strong anti-interference capabilities.
- Simultaneous measurement and monitoring of air pressure and temperature, with self-testing and tire leak detection functions.
- IP67 protection rating.
- Simple installation.
Product parameters and specifications
| Serial Number | Item | Technical Parameters |
| 1 | Battery Model | CR2050B(345mAh) |
| 2 | Radio frequency | 433.92MHz±38KHz |
| 3 | Standby current | ﹤0.7uA |
| 4 | Emission current | ﹤10mA |
| 5 | High-frequency transmission power | ﹤8dbm（50Ω) |
| 6 | High frequency modulation method | FSK |
| 7 | low frequency receiving frequency | 125KHz±5KHz |
| 8 | Low-frequency demodulation method | ASK |
| 9 | Pressure measurement range | 0-14Bar |
| 10 | Pressure resolution | 1.572KPa |
| 11 | Pressure measurement accuracy | ±0.2bar(0℃~70℃) |
| ±0.48bar(-40℃~105℃) | ||
| 12 | Temperature measurement range | -40℃~105℃ |
| 13 | Temperature resolution | 1℃ |
| 14 | Temperature measurement accuracy | ±4℃（0℃~70℃） |
| 15 | Operating temperature range | -40℃~105℃ |
| 16 | Storage temperature range | -40℃~105℃（It is recommended to store at room temperature.） |
| 17 | Protection level | IP67 |
| 18 | Battery lifespan | 5 year |
| 19 | Weight | 66.5g±1g |
Installation Instructions (Illustrated)

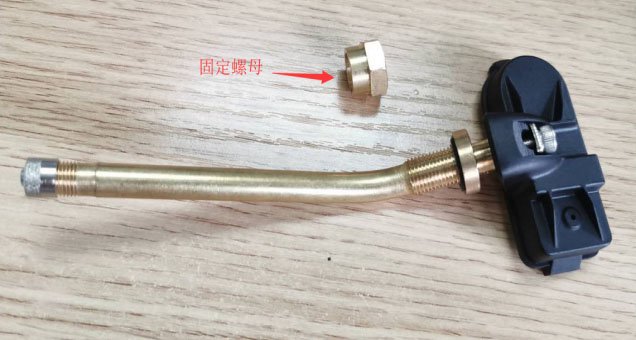

1. Remove the retaining nut.

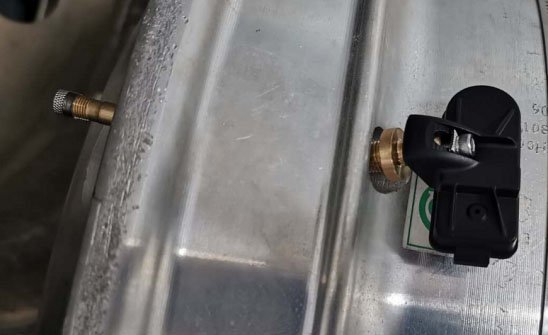

2. Insert the sensor valve stem into the valve stem hole.
3. Replace the retaining nut on the valve stem and tighten it with an electric screwdriver. Set the screwdriver torque to 4 N·m. Installation complete.
 |
 |
|
2.After installing the sensor, put the nut back onto the valve stem. |
Contact UsFAQ About Tire Pressure Monitoring Systems (TPMS)
What is a Tire Pressure Monitoring System (TPMS)?
A Tire Pressure Monitoring System (TPMS) is an electronic system that monitors the air pressure inside vehicle tires. Sensors installed in each wheel detect pressure changes and send data to the vehicle dashboard. When tire pressure is too low, the system alerts the driver to improve safety and prevent tire damage.
How Does a Tire Pressure Monitoring System Work?
A TPMS works by using sensors installed in the tire or valve stem. These sensors measure tire pressure and transmit data wirelessly to the vehicle’s control unit. If the pressure drops below the recommended level, the system triggers a warning light to alert the driver.
Why Do Trucks Need TPMS?
Trucks require TPMS because they carry heavy loads and travel long distances. A truck tire pressure monitoring system helps prevent tire blowouts, improves fuel efficiency, and reduces tire wear. For fleet vehicles, TPMS also helps monitor tire conditions and reduce maintenance costs.
How to Replace a TPMS Sensor?
To replace a TPMS sensor, the tire must first be removed from the wheel rim. The old sensor attached to the valve stem is then replaced with a new one. After installation, the tire is remounted and the new sensor is programmed or relearned using a TPMS tool.
How to Install a TPMS Valve Stem?
Installing a TPMS valve stem involves inserting the valve through the wheel rim, attaching the sensor inside the rim, and tightening the retaining nut to the recommended torque. After mounting the tire, the system should be checked and programmed if required.
Are TPMS Sensors Universal?
Not all TPMS sensors are universal. Many sensors are designed for specific vehicle brands and frequencies. However, programmable or universal TPMS sensors can be configured to work with multiple vehicles, making them a popular choice for tire service shops.
