4 Ton Two Post Lifts

A 4 Ton Two Post Lift is a professional automotive lifting solution designed to lift vehicles up to 4000kg (8,000 lbs).
It is widely used in car repair shops, garages, and service stations for maintenance, inspection, and repair work.

Our 4 ton two post lifts feature electro-hydraulic systems, strong steel structure, and advanced safety locking mechanisms, making them ideal for professional automotive service environments.

4 Ton Two Post Lift

01 Electric hydraulic power system, strong and durable power

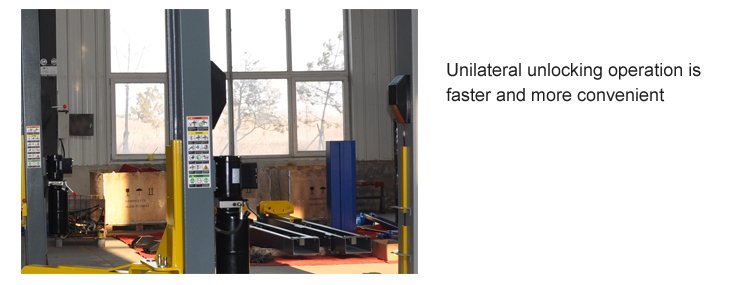

02 Bilateral manual unlocking for easier operation

03 Rubber crash strips protect the doors and prevent collisions for vehicles

04 dual hydraulic cylinder chain drive, high safety and reliability

05 rope balance system, forcing two pulleys to move synchronously, effectively preventing the vehicle from tilting

Technical Specifications

Types of 4 Ton Two Post Lifts

There are several types of 4 ton two post lifts available:

- Symmetrical Two Post Lift – Ideal for trucks and balanced lifting
- Asymmetrical Two Post Lift – Easier door access for cars
- Clear Floor Two Post Lift – More workspace without floor obstruction
- Base Plate Two Post Lift – Suitable for low ceiling workshops

Each type is designed to meet different garage layouts and vehicle service needs.

Key Features of 4 Ton Two Post Lifts

Our 4 ton two post lifts are designed for durability and performance:

- Lifting Capacity: 4000kg (8,000 lbs)
- Max Lifting Height: 1800–1900mm
- Lifting Time: 45–60 seconds
- Drive System: Electro-hydraulic
- Dual Hydraulic Cylinders for stable lifting
- Automatic Safety Lock System
- Steel cable synchronization system

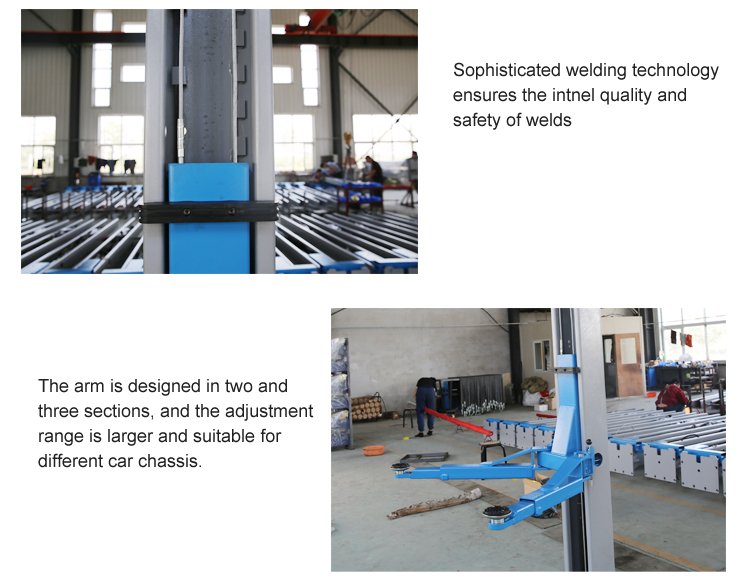

- Adjustable lifting arms for different vehicles

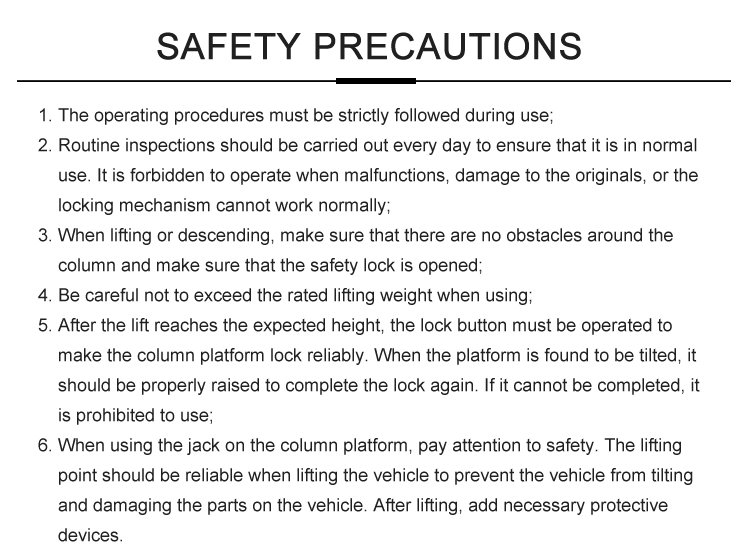

Safety precautions

1. Strictly follow the operating procedures when using;

2. Regular inspections should be conducted daily to ensure its normal use. Operations are prohibited when faults, damage to the original components, or the locking mechanism cannot function properly;

3. When lifting or lowering, ensure that there are no obstacles around the column and ensure that the safety lock is opened;

4. Be careful not to exceed the rated lifting weight during use;

5. After the lifting reaches the expected height, the locking button must be operated to ensure reliable locking of the column platform. When the platform is found to be tilted, it should be raised appropriately and the locking should be completed again. If it cannot be completed, it is prohibited to use it;

6. When using the jack on the pillar platform, attention should be paid to safety. When lifting the vehicle, the lifting point should be reliable to prevent the vehicle from tilting and damaging the parts on the vehicle. After lifting, necessary protective devices should be added.

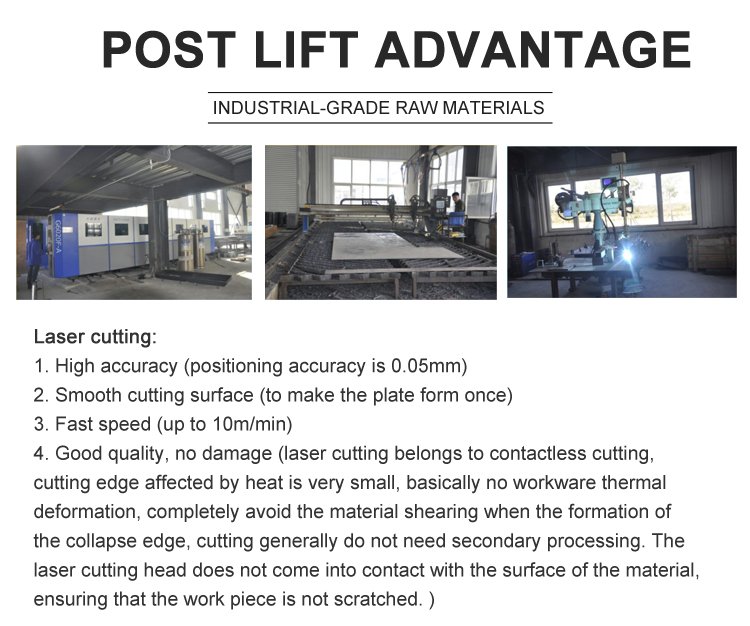

Laser cutting:

1. High accuracy (positioning accuracy is 0.05mm)

2. Smooth cutting surface (to form the sheet in one go)

3. Fast speed (up to 10m/min)

4. Good quality and no damage (Laser cutting belongs to non-contact cutting, with minimal heat impact on the cutting edge and almost no thermal deformation of the workpiece, completely avoiding edge collapse formed during material punching and shearing. The cutting seam generally does not require secondary processing. The laser cutting head does not come into contact with the material surface, ensuring that the workpiece is not scratched.)

Looking for a reliable 4 ton two post lift supplier?

Contact us today to get the latest price and product details.

Why Choose Our 4 Ton Two Post Lift Manufacturer

✔ Factory Direct Price – No middleman
✔ Strong Steel Structure – Long service life
✔ Fast Delivery – 7–15 days
✔ OEM Customization – Logo & packaging
✔ Export to 50+ countries
✔ Strict Quality Control System

How to Choose a 4 Ton Two Post Lift

When selecting a 4 ton two post lift, consider:

- Vehicle weight capacity (up to 4000kg)
- Workshop ceiling height
- Symmetrical or asymmetrical design
- Power supply (220V or 380V)
- Safety locking system
- Installation space requirements

FAQ

Q1: What vehicles can a 4 ton two post lift handle?
A: Cars, SUVs, and light trucks under 4000kg.

Q2: What is the lifting height?
A: Typically 1800mm–1900mm.

Q3: Do you support OEM customization?
A: Yes, logo and packaging customization are available.

Q4: What is the delivery time?
A: Usually 7–15 days.

Q5: Is installation difficult?
A: We provide installation guidance and manuals.
