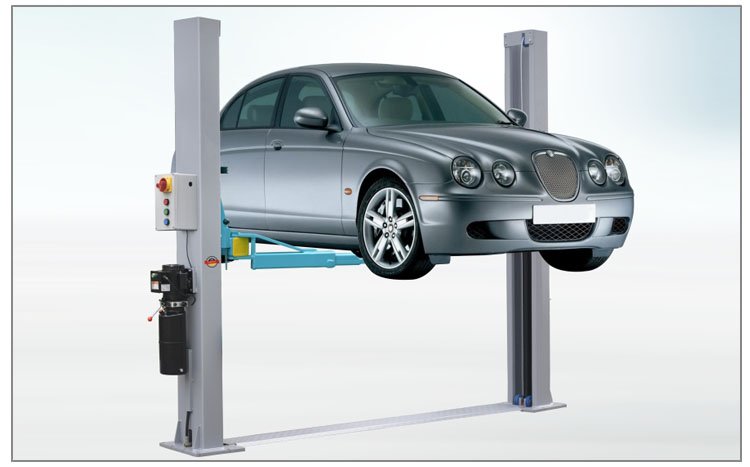

4.0Ton 2Post Life S-TB9000E
4.0Ton 2Post Life S-TB9000E is a professional automotive lifting system designed for vehicle maintenance and repair. Featuring two heavy-duty columns, adjustable swing arms, and a hydraulic lifting mechanism, it provides full undercarriage access for cars, SUVs, and light trucks. It is widely used in auto repair shops, garages, and service stations for efficient and safe vehicle servicing.

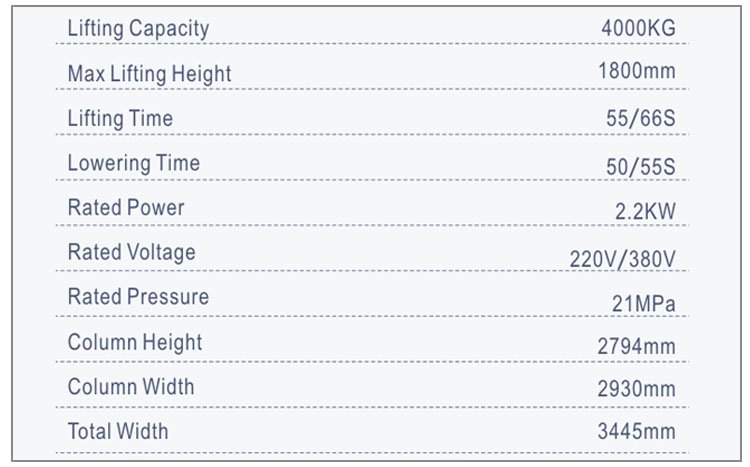

Technical Specifications
| Lifting Capacity | 4000KG |
| Max Lifting Height | 1800mm |
| Lifting Time | 55/66S |
| Lowering Time | 50/55S |
| Rated Power | 2.2KW |
| Rated Voltage | 220V/380V |
| Rated Pressure | 21MPa |

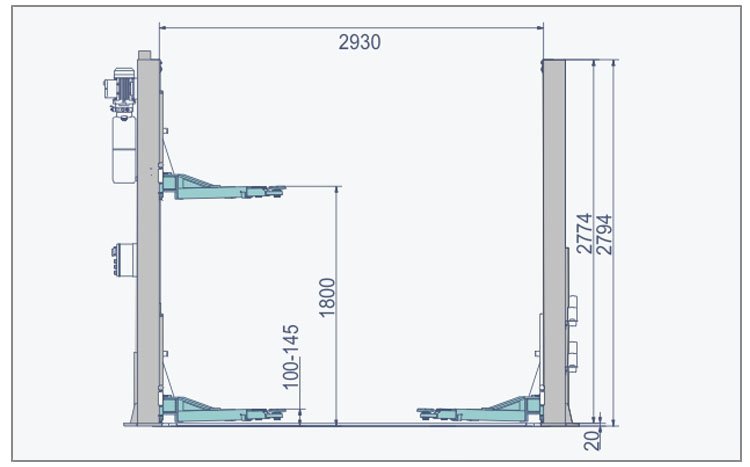

| Column Height | 2794mm |
| Column Width | 2930mm |
| Total Width | 3445mm |
Why Choose Our 2 Post Lift?
√ Full Underbody Access
√ Space-Saving Design
√ High Lifting Efficiency
√ Wide Application Range
√ Long Service Life
Key Features of 4 Ton 2 Post Lift
- 9000 lbs (4 Ton) Lifting Capacity
Suitable for passenger cars, SUVs, and light trucks - Dual Column Hydraulic System
Provides smooth and synchronized lifting performance - Adjustable Swing Arms
Compatible with various vehicle wheelbases - Symmetric / Asymmetric Design Options
Flexible for different vehicle positioning - Clear Floor or Base Plate Structure
Suitable for different workshop heights
Structural Design
The 2 post lift consists of:
- Two heavy-duty steel columns
- Hydraulic lifting cylinders
- Adjustable lifting arms

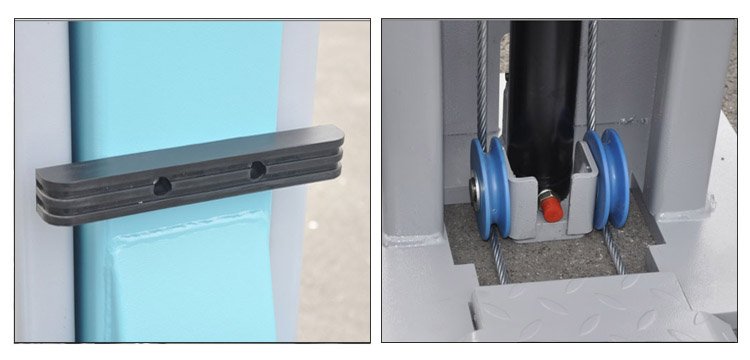

- Synchronization cables

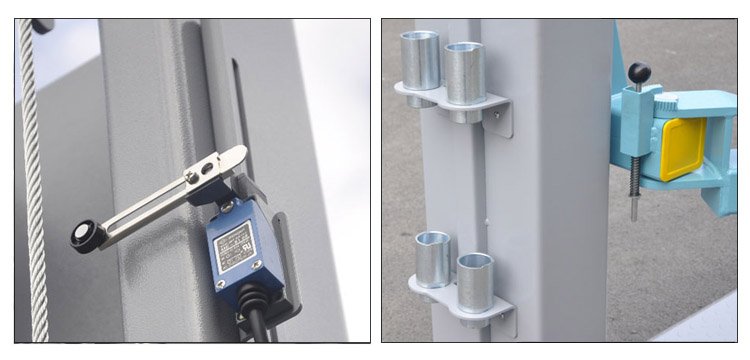

Safety Features
- Mechanical safety locks at multiple heights
- Hydraulic overload protection
- Anti-burst valve system

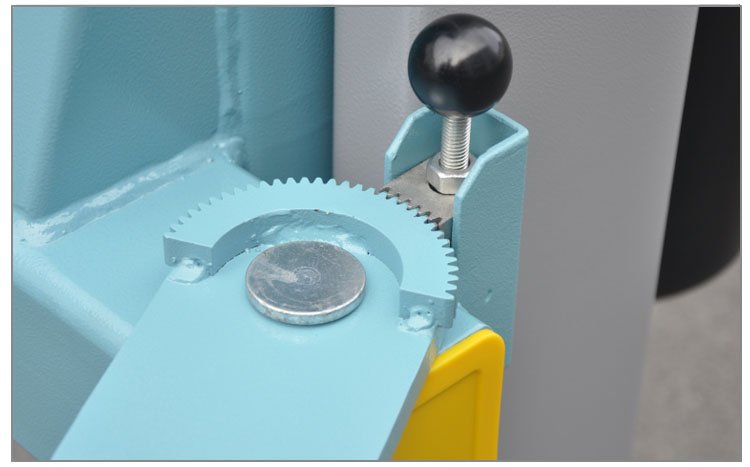

- Arm locking mechanism
Applications
- Auto Repair Shops
- Car Maintenance Centers
- Tire Service Workshops
- 4S Dealerships
2 Post Lift vs Scissor Lift
| Feature | 2 Post Lift | Scissor Lift |
|---|---|---|
| Lifting Height | High | Low |
| Access | Full underbody | Limited |
| Space | Compact | Compact |
| Application | Repair | Tire service |
Get a Quote for Alignment Scissor Lift
Looking for a reliable alignment lift supplier?
Contact us today for:
- OEM / ODM customization
- Competitive factory price
- Fast global delivery
Our team is ready to help you choose the right model.
FAQ
What is a 4 ton 2 post lift?
A 4 ton 2 post lift is a hydraulic lifting system designed to raise vehicles up to 4000kg for repair and maintenance.
What is the difference between symmetric and asymmetric lift?
Symmetric lifts center the vehicle, while asymmetric lifts allow easier door access and positioning
What vehicles can it lift?
It can lift cars, SUVs, and light trucks within 9000 lbs capacity.
What foundation is required?
A reinforced concrete floor is required for safe installation
