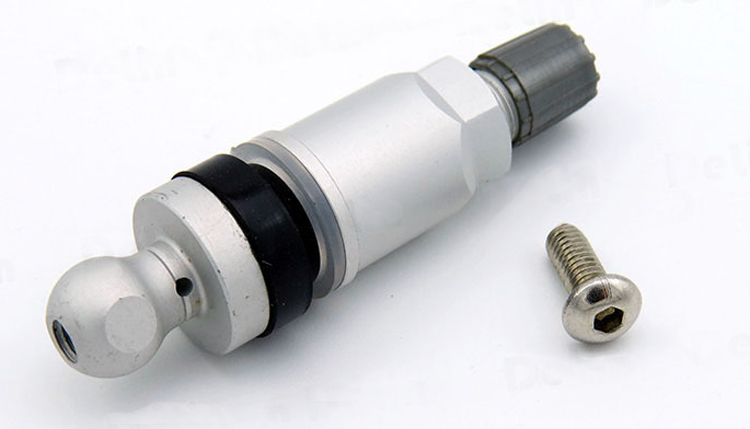

TPMS Valve 22

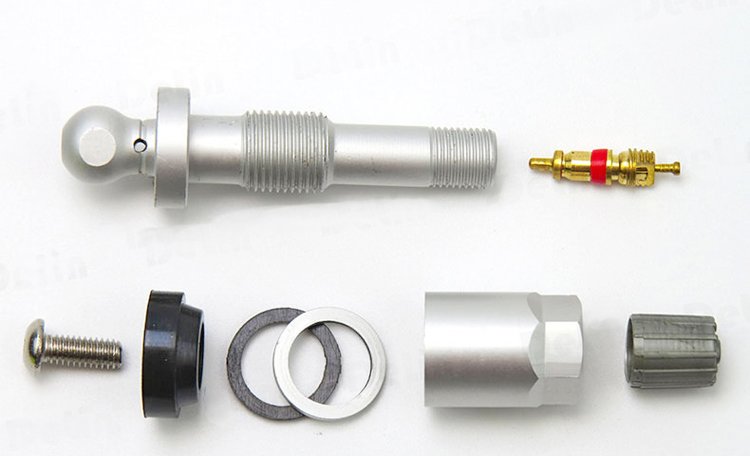

The TPMS-22 screw valve for TPMS sensors is a perfect replacement for the valves of the factory-installed pressure measurement systems. Suitable for all types of alloy wheels with a diameter of 11.3 mm. The tightness of our valve connections is the basis of a well-functioning system and ensures the correct tire pressure reading. The valve consists of the following elements:

metallic painted aluminum body,
from the inside of the rubber seal rim
plastic washer on the outside of the rim
plastic cap
spring leaf
threaded socket for installation with a pressure sensor

Model TPMS-22

Types Tubeless valve

Suitable models Iron General, Nissan, BMW X5, Mitsubishi, Jeep, X-Trail

Materials  Aluminum alloy body +EPDM rubber pad + pure copper valve core + nylon plastic cap

Colour Gray

Product standard American valve

Thread size 8V1

Packaging 100/pp，10 Bag/box

Carton size 35*26*14cm

N.W 13.8.g（With screws）

G.W 14.8.kg
