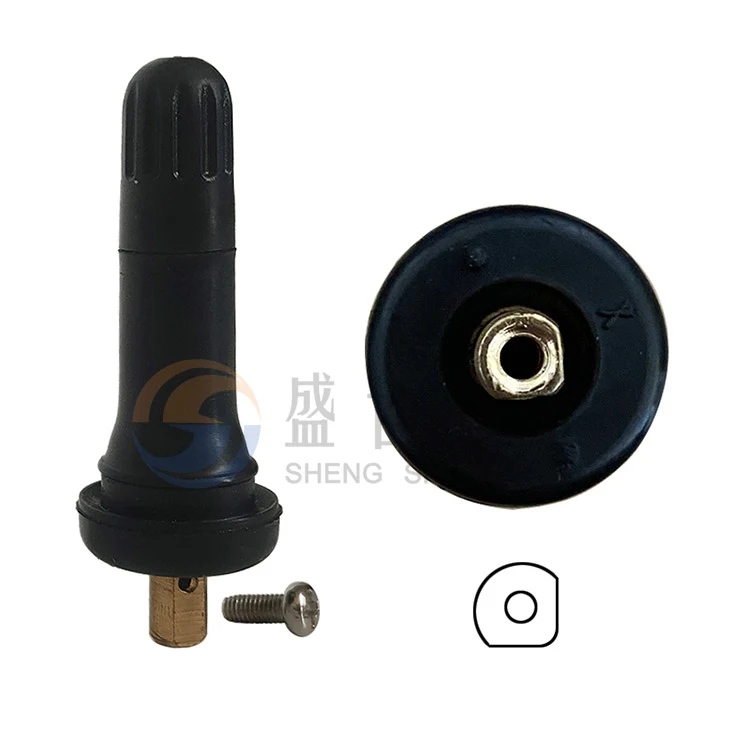

TPMS Valve 02
The TPMS Valve 02 Universal Tire Pressure Monitoring System Valve Stem is engineered for precision, durability, and seamless integration. Designed as a high-performance replacement for damaged or corroded valve stems, this component ensures a leak-proof seal and reliable data transmission for your vehicle's TPMS sensors. Whether you are a high-volume tire service center or a specialized automotive distributor, the TPMS-02 offers the perfect balance of OEM quality and aftermarket value.

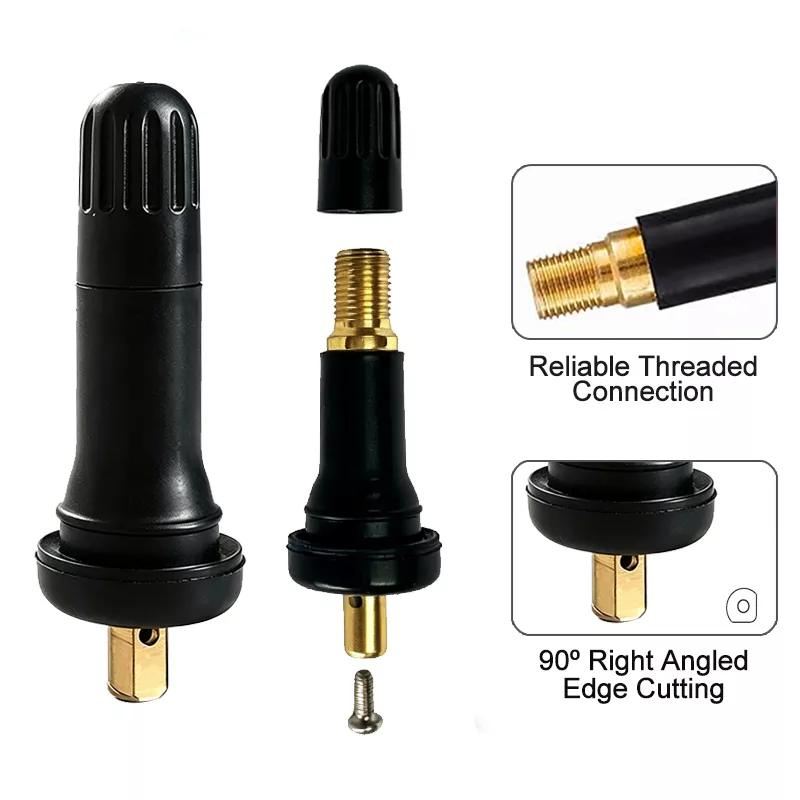

90° right angle trimming
Bottom thread button M3

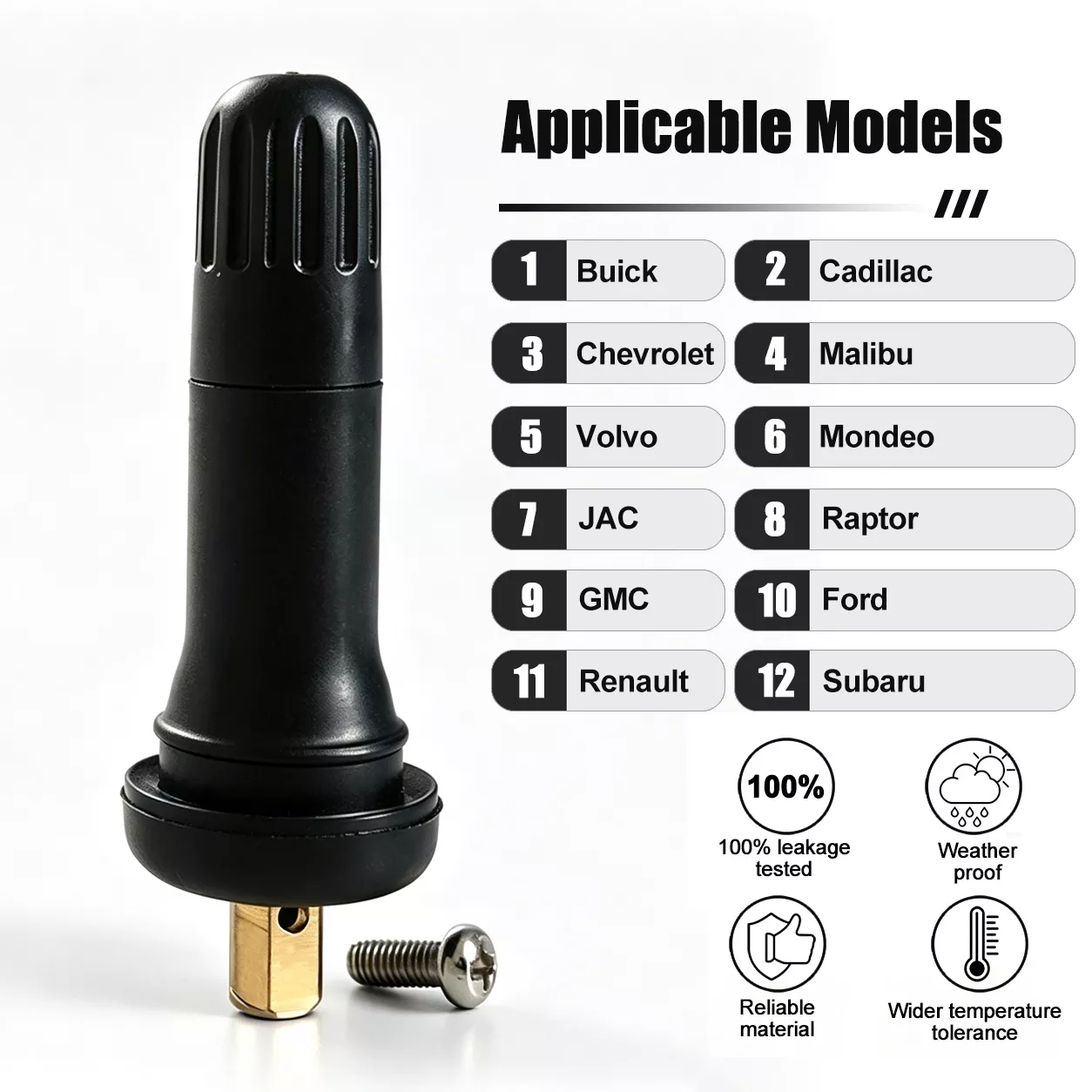

Applicable models: Buick, Cadillac, Chevrolet, Malibu, Mondeo, Volvo, JAC, GMC, Raptor, Ford, Renault, Subaru
| Model | TPMS-02 |
| Application | TPMS sensor |
| Weight | 17 gram |
| Packaging | Plastic bag and outer carton |
| Custom packaging | Accept |
TPMS valves 02 Key Features
-
High-Grade Material: Manufactured from premium anodized aluminum (or high-quality brass options), providing superior resistance to oxidation and road salt—essential for North American winters.
-
Leak-Proof Engineering: Features high-temperature EPDM rubber O-rings and a precision-engineered valve core, tested to withstand pressures up to 100+ PSI.
-
Universal Compatibility: Specifically designed to be compatible with major sensor brands such as Schrader, Continental, and Pacific, fitting most aluminum and alloy wheel rims.
-
Easy Installation: Features a standard hex nut design for precise torque application, preventing sensor damage during installation.
-
Rigorous Quality Control: Every batch undergoes a 100% air-leak test and meets IATF 16949 automotive quality management standards.
Technical Specifications
| Feature | Specification |
| Model | TPMS-02 |
| Body Material | Anodized Aluminum / Electroless Nickel Plated |
| Seal Material | High-Grade EPDM Rubber (Viton optional) |
| Torque Specification | 4.0 Nm (Approx. 35 in-lbs) |
| Application | Passenger Vehicles, SUVs, and Light Trucks |
| Salt Spray Test | ≥ 240 Hours (Industry Standard) |
Quality determines the usage life of TPMS valves 02
- The key point of TPMS valves is the Valve STEM.
- We must test the air tightness one by one after production to ensure all tire valves are safe enough for their users.
- Brass(copper) is an inert metal, and its properties determine that it is not easy to have chemical reactions in humid and high temperature environments.
- The valve cores of each valve stem are also brass(copper) material .Chromed or yellow ,color is random.
Frequently Asked Questions (FAQ)
1. What is a TPMS valve and why is it important?
A TPMS valve is a component installed on the wheel that transmits tire pressure data to the Tire Pressure Monitoring System (TPMS). It helps detect under-inflation or over-inflation in time, improving driving safety and reducing tire wear.
2. What is the service life of the TPMS valve?
Typically, the service life is 5–7 years, depending on climate, road conditions, and maintenance. It is recommended to replace the valve whenever replacing the TPMS sensor or tires.
3. Is it compatible with major TPMS sensor brands?
Yes. TPMS Valve 09 works with most common TPMS sensors, including Schrader, Huf, Continental, Pacific, and other aftermarket sensors (subject to specification match).
