TPMS Valve 03

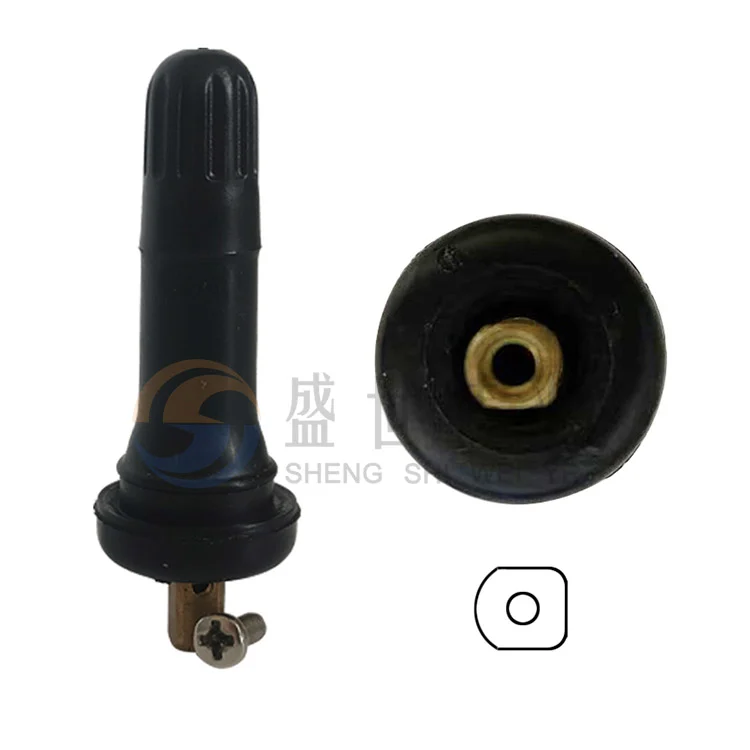

TPMS-03 Tire Pressure Monitoring System Anti-explosion Snap In Tire Valve
Item type: Snap In Tire Valve Stems

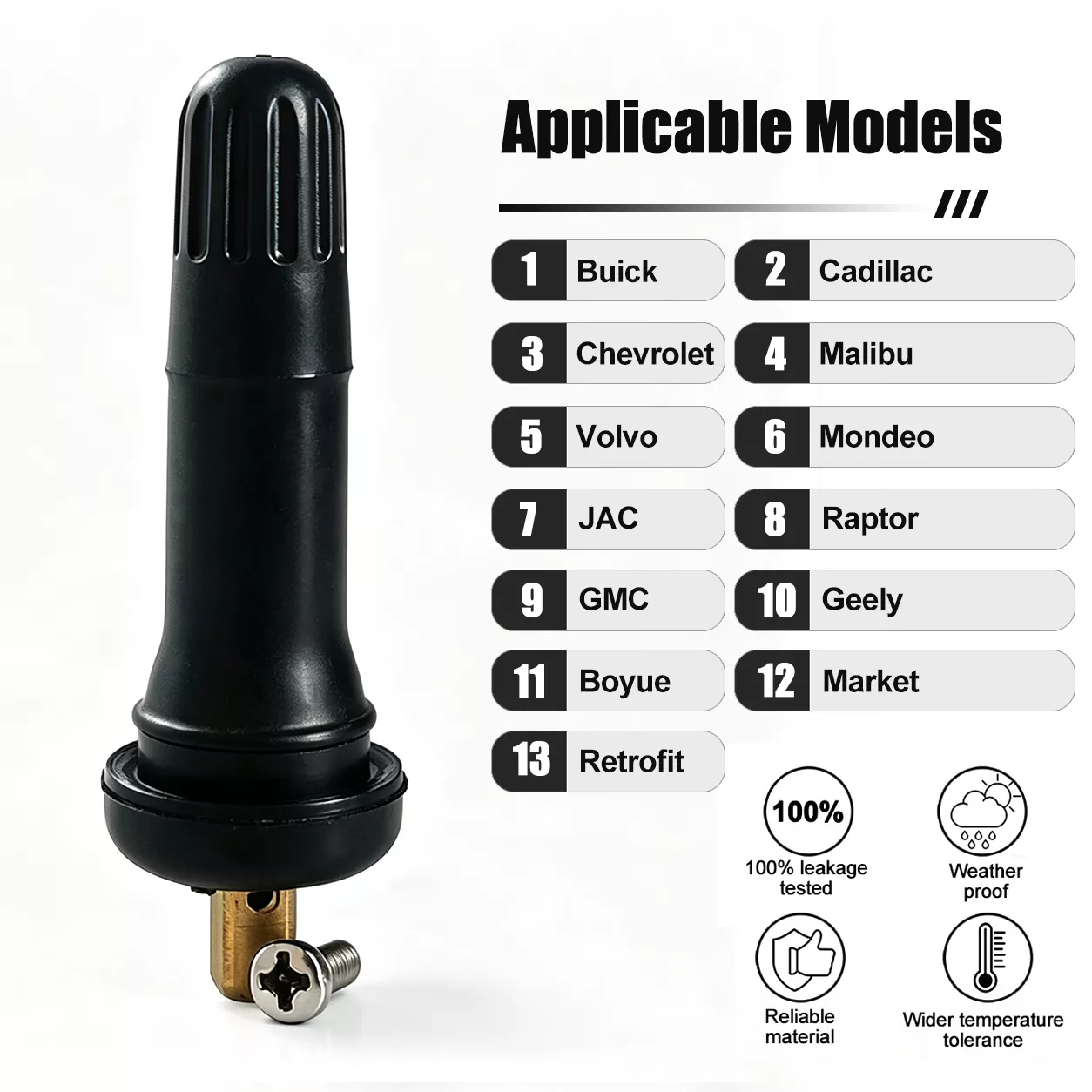

Applicable models: Buick, Cadillac, Chevrolet, Malibu, Mondeo, Volvo, JAC, GMC, Ford Raptor, Geely Boyue, market installation
Color: Black
Material: EPMD rubber + Copper material
Standard: American
Assembly method: Buckle type
TPMS-03 Features:
- Includes valve stem core (already installed), valve stem cap & mounting screw that attaches valve stem to sensor.
- Stable characteristics, high reliability.
- Professional design for the Buick hub diameter 11.5, as tire pressure monitoring alarm supporting products.
- Easy installation.
Core Technical Advantages
-
Aerospace-Grade Aluminum: Constructed from high-strength aluminum with an anti-corrosion anodized finish, ensuring the stem will not seize or crack even in high-salt or extreme weather environments.
-
Zero-Leak Technology: Equipped with a premium EPDM rubber gasket and a high-pressure valve core, providing a reliable seal that prevents slow leaks and maintains precise tire pressure.
-
Precise Fitment: Designed with a standard hex nut and washer assembly, allowing for consistent torque application (recommended 4Nm) to protect the internal sensor electronics from stress.
-
Extreme Temperature Resistance: All components are tested to perform reliably in temperatures ranging from -40°C to +125°C, meeting rigorous automotive safety standards.
TPMS-03 Technical Specifications
| Property | Specification |
| Model Number | TPMS-03 |
| Material | Lightweight Anodized Aluminum / Nickel-Plated Brass |
| Valve Type | Bolt-in / Clamp-in |
| Compatible Rim Hole | 11.3mm / 11.5mm (Standard) |
| Grommet Material | High-Temp EPDM |
| Compliance | IATF 16949 / ISO 9001 |
| Standard Finish | Silver (Custom colors available for bulk orders) |
Market Compatibility
The TPMS-03 is a versatile hardware kit used extensively for:
-
Major Sensor Brands: Compatible with Schrader, Huf/BH Sens, Continental (VDO), and Autel sensors.
-
Service Kits: A critical component for any professional TPMS service kit or wheel repair inventory.
-
Vehicle Applications: Widely used in Ford, GM, Chrysler, and various European/Asian passenger vehicle platforms.
Commercial Benefits for Distributors
-
Direct Factory Sourcing: Gain a competitive edge with direct pricing on high-volume orders.
-
Quality Guarantee: 100% visual and leak inspection before shipment to ensure zero-defect delivery.
-
Ready-to-Ship Inventory: We maintain a consistent stock of the TPMS-03 to support just-in-time delivery for North American and European warehouses.
