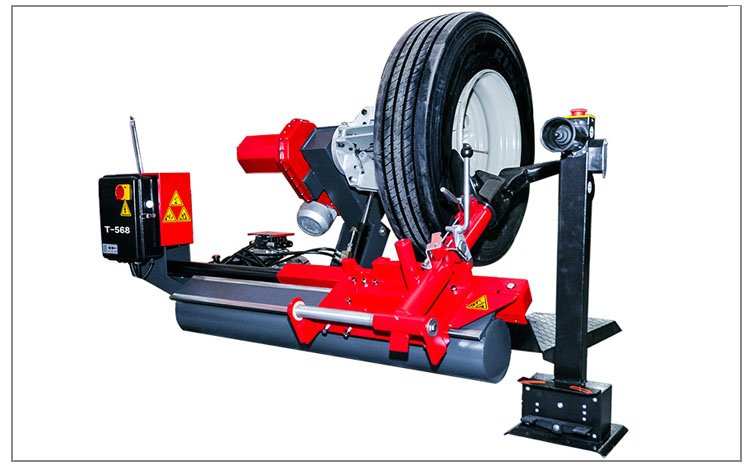

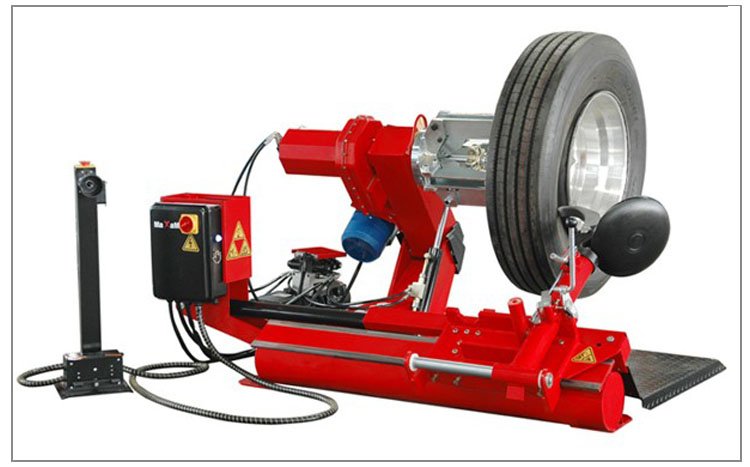

Tire changer S-T568

Tire changer S-T568 tire size 14 "-26 "

Tire changer S-T568   WEIGHT&DIMENSIONS
Model：S-T568
Gross Egight（kg）：633
Outside Dimension L×W×H（mm）：2030×1580×1000

How to use S-T 568 Tire Changer Machine

Tire changer S-T568  PRODUCTS INTRODUCTION

· Semi-Auyomatic truck tyre changer t568 universal

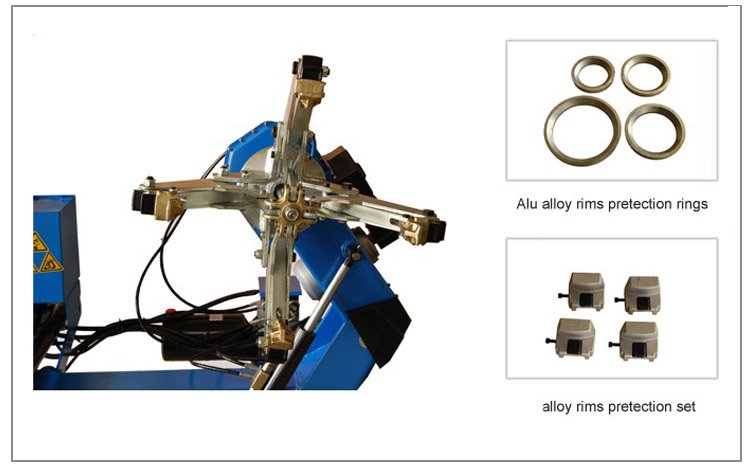

· Self-Centering chuck rim capacity 14"-26"
· Clochwise and anticlockwise rotation of chuck
· Italian pump optional

Tire changer S-T568  FEATURES

This product makes disassembly and assembly of tires more powerful and faster. The wholemachine adopts aluminum alloy and pure copper joints to ensure long-term stable operationof the equipment. The guide rails are quenched and wear-resistant by chrome plating process.

S-T 568 Tire Changer - Frequently Asked Questions (FAQ)

1.568 What types of tires are tire changers primarily used for?

A: The 568 tire changer is primarily used for mounting and dismounting tires on trucks, light trucks, large passenger cars, and agricultural vehicles. Its versatile design is suitable for tires with steel rims, especially for use in factories/repair shops handling medium to large tires. It generally accommodates wheel rim diameters from 14″ to 26″.

2. What is the maximum tire size/weight for this machine?

A: Compatible wheel diameter: approximately 14"–26" (some models can accommodate larger sizes); Maximum tire diameter: approximately 1600 mm; Maximum wheel weight: approximately 500 kg; Maximum wheel width: approximately 780 mm.

3.What kind of power system does the machine use?

A: The typical 568 tire changer uses a hydraulic drive + electric motor system. Common configurations include: hydraulic pump motor: ~1.5 kW; variable speed gear motor: ~1.8–2.2 kW; low-voltage control system (usually 24 V) for safety and reliability. Supports dual power supply options of 220 V / 380 V.

4. Is it automatic or semi-automatic?

Answer: The 568 model is mostly a semi-automatic tire changer, meaning it can automatically perform clamping and some disassembly actions, but the entire disassembly and assembly process still requires manual operation.

5.Is it easy to use? Can beginners use it?

A: Yes, the semi-automatic design improves assembly and disassembly efficiency.  Equipped with a self-centering chuck and hydraulic control system, it makes operation relatively simple. We recommend that beginners familiarize themselves with the steps under the guidance of a professional to improve safety and efficiency.

6.Does this machine require regular maintenance?

A: Yes, it's necessary. Regular inspections are recommended, including: 1. Hydraulic oil level and quality; 2. Pipe fittings and seals; 3. Motor and control components. Proper maintenance can extend the service life and reduce malfunctions.

7.What should be considered regarding the installation location?

Answer: The machine is quite heavy (approximately 500 kg), so ensure the ground is level and strong enough to bear the weight, and leave sufficient operating space during installation. It is recommended to securely fix it to the ground or base to improve stability.

8.Is it possible to fit tires of different sizes?

Answer: Yes, the adjustable chuck arm extension and clamping mechanism allow for adaptation to wheel rims of different widths and diameters, but using tires outside the rated range is still not recommended.

9.Does this tire changer support CE or other certifications?

Answer: This equipment is CE certified (certificate number CE-MC-230426-030-03-2A).
