Cangzhou ShengshiWeiye Automobile Accessory Co.,Ltd

Tire Changer

Tire Changer S-TY008


Product Details

Tire Changer S-TY008

Tire Changer S-TY008 WEIGHT&DIMENSIONS
Model:S-TY008
Gross Weight(kg):580
Powder Generator & Air Compressor &  Machines(kg):880
Outside Dimension L×W×H(mm)    1160×1000×1550       1700×1100×1650

Tire changer S-TY008 tire size 13"-26"

Tire Changer S-TY008 Tire Changer S-TY008 Tire Changer S-TY008 Tire Changer S-TY008 Tire Changer S-TY008 Tire Changer S-TY008

Tire Changer S-TY008

Tire Changer S-TY008 TECHNICAL PARAMETER

Rim diameter 13" - 26"
Maximum tire weight 700kg
Maximum tire width 600mm
Maximum tire diameter 1300mm

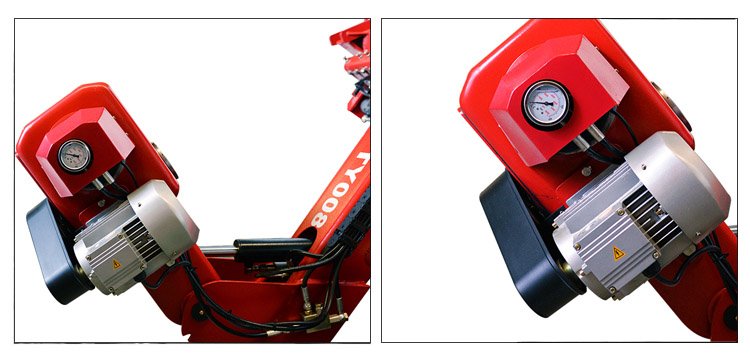

Hydraulic power unit 1.1KW
Gear box motor 1
Tire pressure 2500kg
Voltage 220/400V, 50/60HZ, 1P/3P optional

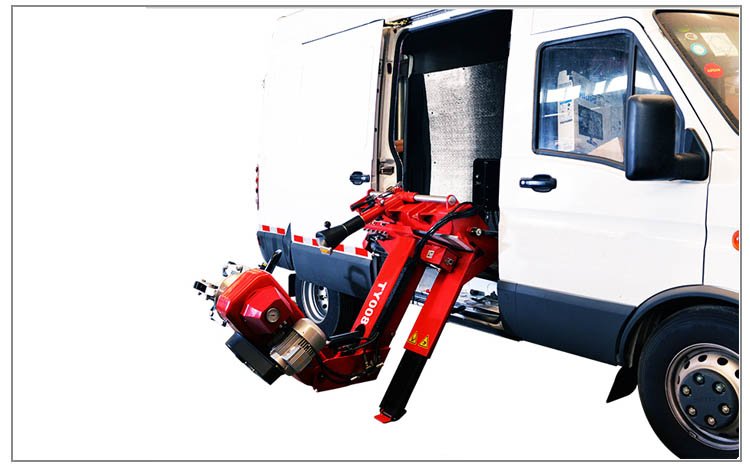

Tire Changer S-TY008 DOOR RANGE

The maximum height of the door on the machine 1450mm
Maximum internal width 1650mm
Maximum gate width 980mm
The van thickness is less than or equal 160mm
The chassis of a car to the floor About 700mm

Tire Changer S-TY008 PRODUCT FEATURES

  • Tire Changer S-TY008 is an electric hydraulic tire dismantling machine suitable for trucks, buses and other tires
  • This equipment is suitable for mobile emergency call service

Adjustable generator
