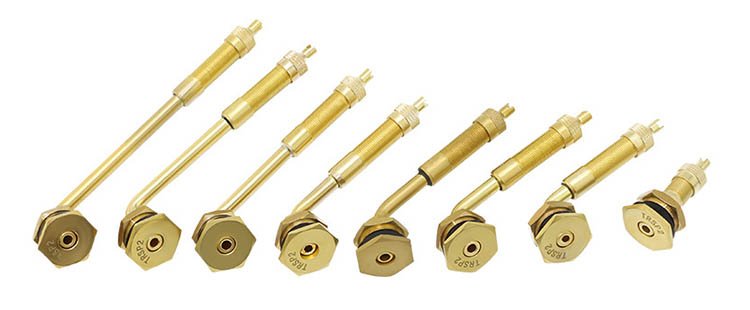

Larde Bore Swivel Tupe Tire Valves
The swivel valve is designed for tire use, providing a reliable seal between the valve core and the tire rim thanks to its locking mechanism, it reduces air leakage while maintaining ease of inflation with its long 3-1/8 inch stem. The swivel function facilitates easier positioning during the filling process making it suitable for industries like automotive repairs and tire manufacturing.

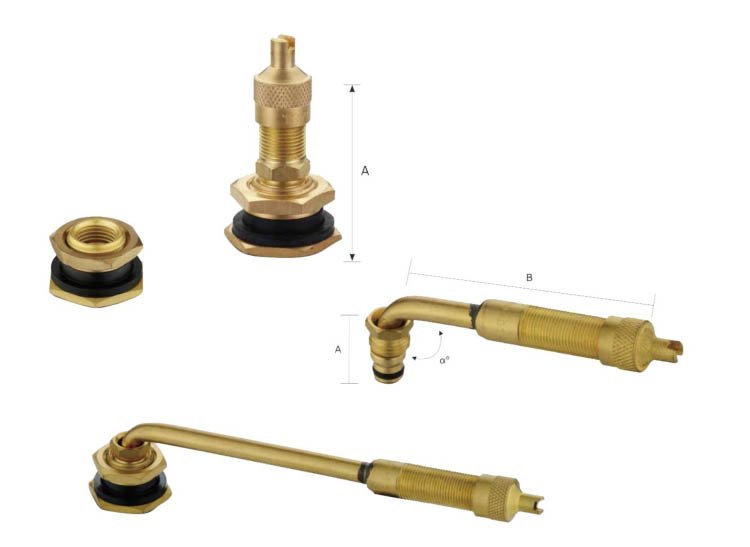

| TR NO. | A | B | α° |
| TRJ650-03 | 27 | 79 | 80 |
| TRJ651-03 | 32 | 119 | 90 |
| TRJ652-03 | 27 | 140 | 86 |
| TRJ653-03 | 27 | 64 | 80 |
| TRJ654-03 | 27 | 79 | 60 |
| TRJ655-03 | 24 | 79 | 74 |
| TRJ656-03 | 67 | 94 | 90 |
| TRJ657-03 | 27 | 102 | 80 |
| TRJ658-03 | 27 | 140 | 80 |
| TRJ659-03 | 48 | 89 | 90 |
| TRJ660-03 | 48 | 222 | 90 |
| TRJ669-03 | 27 | 64 | 90 |
| TR670-03 | 41 | - | - |

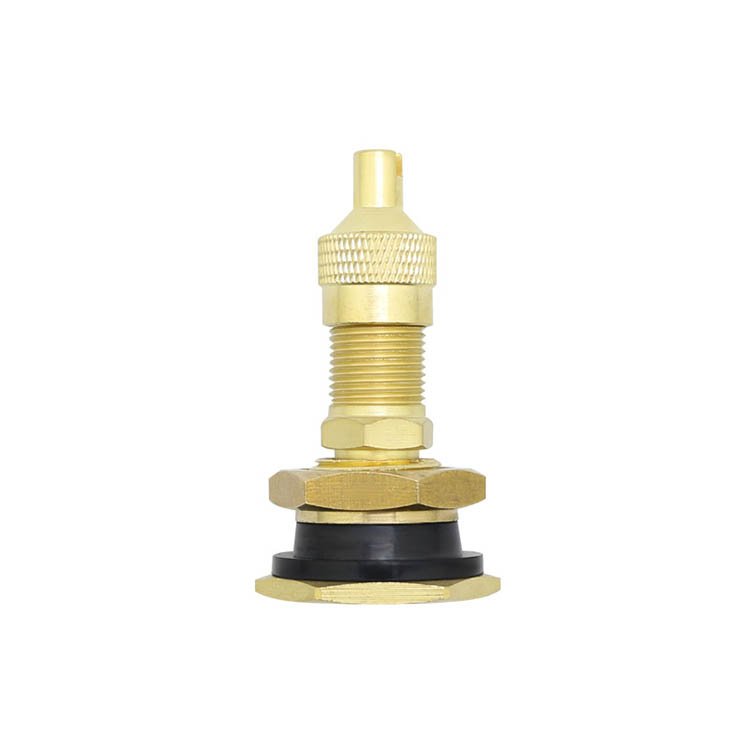

Larde Bore Swivel Tupe Tire Valve Stem for Over-Sized Vehicle Van is made from brass, which is known for its durability and resistance to corrosion. It is also equipped with a high-temperature valve core that can withstand the high temperatures generated by high-speed driving.
When selecting a valve stem, it is important to ensure that it is compatible with your vehicle's tires and wheels.
It has a maximum inflation pressure of 80 PSI.
It is recommended to have a professional install the valve stem to ensure proper installation and prevent any damage to the tire or wheel. Regularly checking and maintaining proper tire pressure is essential for safe and efficient driving.
